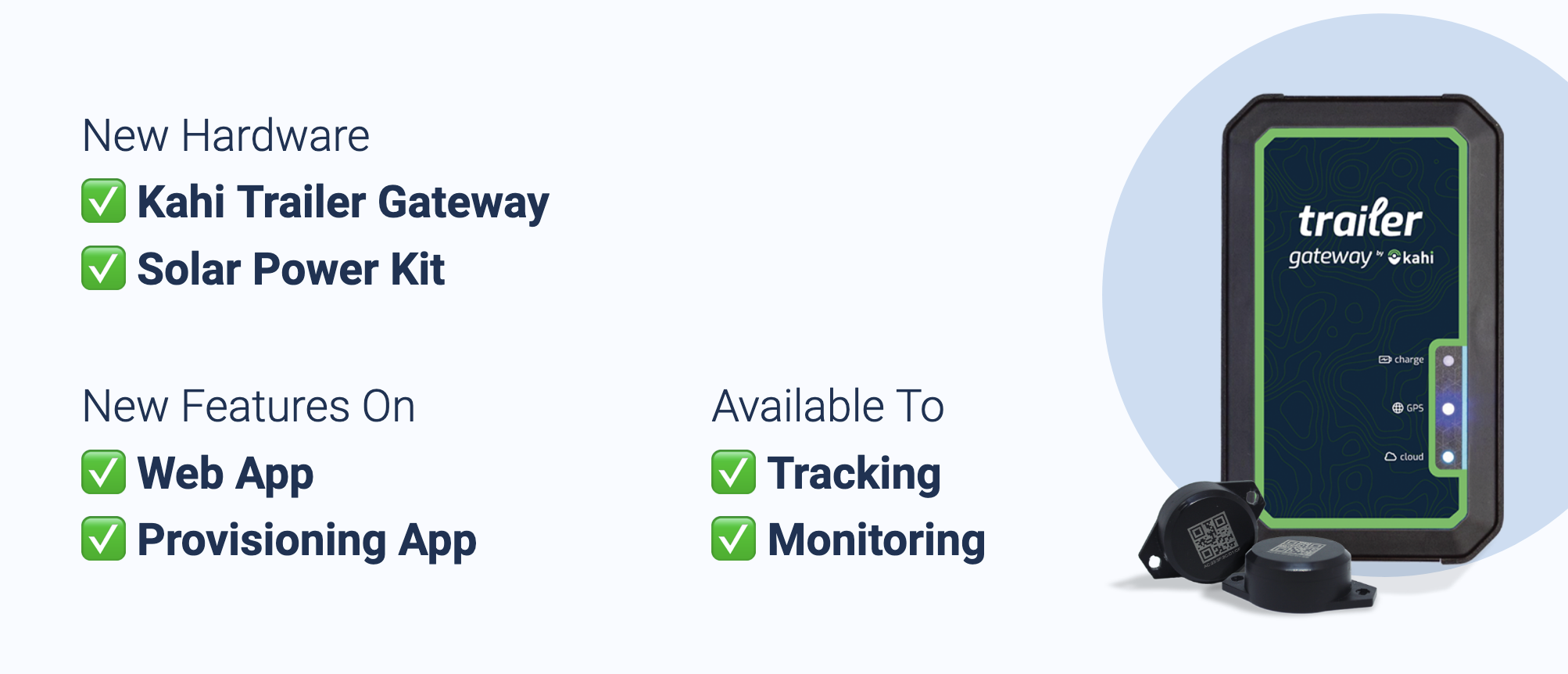

Kahi Trailer Gateway: Info & Set Up

SUPPORT AND WARRANTY

Third party power (solar or battery) sources from vendors not recommended by Kahi Inc., will be limited in their scope of support and warranty due to unknown variables introduced when products not tested with our equipment our used.

SPECIFICATIONS

• Provides GPS data on trailer location and tracked assets
• Physically moving the trailer will automatically update the location of the trailer in the Kahi ecosystem.
• Trailer has 250m geofence radius
• Assets are considered ‘at home’ when at the trailer and are deployed to job sites from the trailer.
• Trailers get assigned a home warehouse during set-up
• Assets that are tracked going in/out of the trailer are reported back to the web application
• Solar power supply not included*

*Click here to learn about our Solar Power Kit.

Installation/ Provisioning of the Kahi Trailer Gateway

IMPORTANT:  Ensure your Kahi Mobile Provisioning app is updated to the latest version and you have Manager or above permission rights.  'Member' permission rights will not allow completing the set up.

STEP 1: ADD Trailers via Kahi Web Browser App

New Features: Web App

Create trailers using the Kahi browser app.  A new ‘Trailers’ page to the main navigation of
the web app. Under the trailers page, a ‘new trailer’ button resides at the top right corner of the top navigation bar.

Creating a new trailer impacts billing just like creating a new warehouse location.

STEP 2:  Use the Kahi Mobile App to Provision the Trailer Gateway

NEW FEATURES:  PROVISIONING APP

1. Scan the gateway with the camera screen
2. Select trailer that the gateway is to be installed to
from the drop down. The dropdown is populated
with the untracked trailers that were created in the
web app.
3. Follow the steps on screen to finish provisioning
trailer gateway and start tracking

NEW FEATURES:  PROVISIONING APP
New Trailer page

Trailer page will list all trailers created in the web app
Unknown: not tracked
Checkmark/online (or ‘X’ icon/offline) + time: tracked

*You cannot provision a gateway from the trailer page.  To provision a gateway, visit the gateways page and hit ‘plus’ icon in bottom right.

NEW FEATURES:  PROVISIONING APP

Provision New Trailer Gateway to Trailer

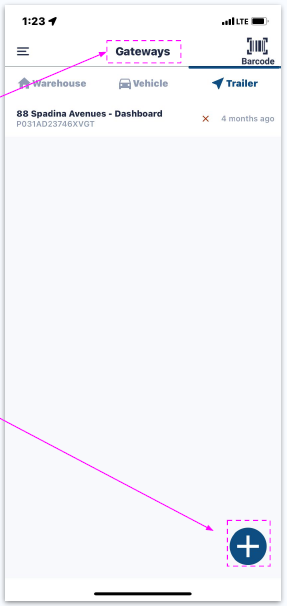

To provision a gateway, visit the gateways page and hit ‘plus’ icon in bottom right.
Note: it doesn’t matter if user is on fixed, vehicle, or trailer tab, plus will always launch gateway provisioning flow.

NEW FEATURES:  PROVISIONING APP

Trailer Details Page

New trailers details page will show tracking status, name, latest coordinates, last seen, and any images captured.

NEW FEATURES:  WEB APP

New Trailers Page

New ‘New Trailer’ button added to navigation

‘Tracked’: trailers with gateways

‘Not tracked’: trailers with no gateways

Step 3: Physically Install Trailer Gateway into your Trailer (if not done during the steps above)

Unit should be secured in a safe spot within the trailer using double-sided Velcro adhesive, as an example.  Ensure it is placed in a location that has optimal line of sight scan ability of the assets for maximum radius range.
